Description
The YX-DLA-C is a rotatable recessed LED downlight featuring a flexible 360° adjustable gimbal design, allowing the light direction to be easily adjusted according to different lighting requirements. Its lightweight plastic housing provides a practical solution for residential, commercial and hospitality lighting applications.
Available in 5W, 7W, 9W and 12W options, the downlight features 3CCT color temperature switching, allowing users to select different light colors for different environments. The compact 3.5-inch design and adjustable gimbal structure make it suitable for accent lighting, general illumination and spaces where flexible light positioning is required.
Specifications
| Model | YX-DLA-C | ||
| Voltage | AC 90-265V | ||
| Wattage | 5W-12W | ||
| LED Chips | SMD2835 | COB2835 | |
| Luminous Flux (±10%) | 90lm/W | ||
| Color Temperature | 2700K-7000K | ||
| CRI | > 80 | ||
| Beam Angle | 360° | ||
| Material | Die-cast aluminium + PC | ||
| Hole Size (mm) | Φ75-105 | ||
| Lamp Size (mm) | 95-125 | ||
| Average Life | 40000 hrs | ||
| Brand Name | ENSHINE | ||
| Warranty | 2 Years | ||
Key Features
- 360° adjustable gimbal design for flexible light positioning
- Rotatable recessed LED downlight for directional lighting applications
- Lightweight plastic LED downlight housing
- Compact 3.5-inch design
- 5W / 7W / 9W / 12W power options
- 3CCT selectable: 3000K / 4000K / 6500K
- AC90–265V wide voltage input
Details

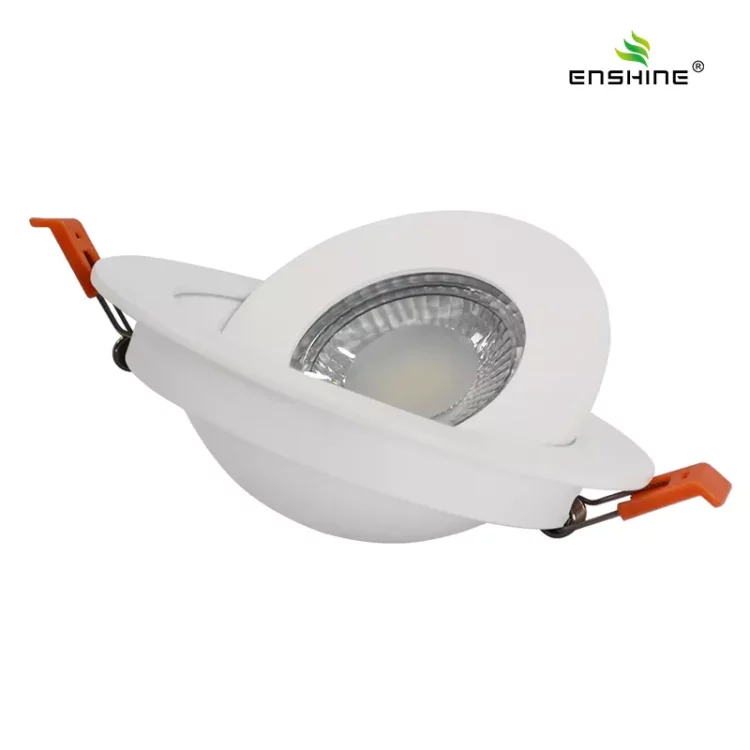

360° Adjustable Gimbal for Flexible Lighting Direction
The key feature of the YX-DLA-C is its 360° adjustable gimbal design, which allows the light direction to be adjusted according to the layout and lighting requirements of the space.
Unlike fixed recessed downlights, the rotatable gimbal structure provides greater flexibility for directing light toward specific areas, objects or architectural features.
This makes the YX-DLA-C a suitable choice for:
- Accent lighting
- Wall washing
- Artwork lighting
- Retail displays
- Residential interiors
- Hospitality spaces
- Commercial interiors
The adjustable design allows lighting distributors and project contractors to offer a more flexible downlight solution for different applications.
Lightweight Plastic LED Downlight Design
The YX-DLA-C features a plastic LED downlight housing designed to provide a lightweight and practical lighting solution.
The plastic construction helps reduce product weight while supporting efficient installation and handling. Its compact recessed design allows the fixture to integrate neatly into different interior ceiling applications.
For lighting distributors and wholesalers, the lightweight design can also help simplify transportation and installation.
3CCT Switchable LED Downlight
The YX-DLA-C incorporates a 3CCT selectable design, allowing users to choose different color temperatures according to the application.
Available color temperature options include:
- 3000K – Warm White
- 4000K – Neutral White
- 6500K – Cool White
The 3CCT function allows one downlight model to meet different lighting preferences and project requirements, making it a flexible choice for distributors and lighting contractors.
3.5-Inch Rotatable Recessed Downlight
With its compact 3.5-inch size, the YX-DLA-C is designed for recessed ceiling applications where space and appearance are important.
The combination of a compact form factor and 360° adjustable gimbal provides both a clean ceiling appearance and flexible light positioning.
The downlight is suitable for residential and commercial projects where directional lighting is required.
Wide Voltage LED Downlight for International Markets
The YX-DLA-C supports AC90–265V wide voltage input, making it suitable for different electrical environments across international markets.
Combined with multiple wattage options and 3CCT switching, the product provides a flexible solution for lighting distributors, wholesalers and project contractors serving different regions.
OEM and ODM Rotatable LED Downlight
ENSHINE provides OEM and ODM support for lighting distributors, wholesalers and project contractors.
The YX-DLA-C can be customized according to project requirements, including wattage, color temperature, CRI, cable and plug configurations and other product specifications.
The combination of rotatable gimbal adjustment, plastic housing, 3CCT switching and multiple wattage options makes the YX-DLA-C a flexible product platform for different lighting markets.
- Support: OEM/ODM Service
- Many items in stock with free custom design
- On-time delivery and product quality assurance
- Factory inspection reports available upon request
- Provide professional customer service
- Support: Trade guarantees to protect your orders
