Description
The lamp body material uses die-casting aluminum, which has good driving heat dissipation.
Using well-known domestic brand SMD patch light sources, it has high brightness, small light aggravation, and long life.

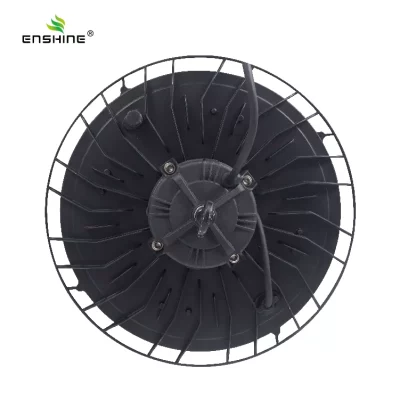

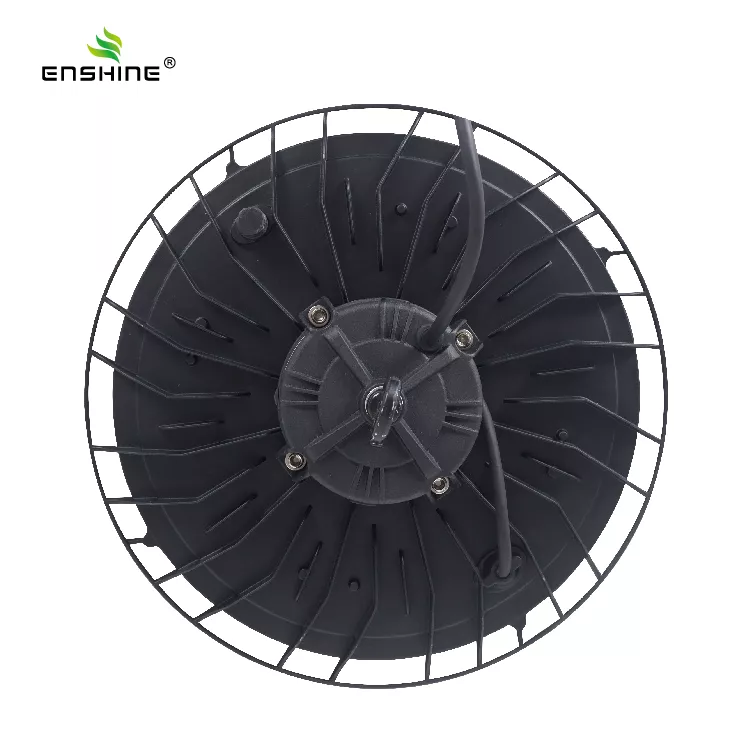

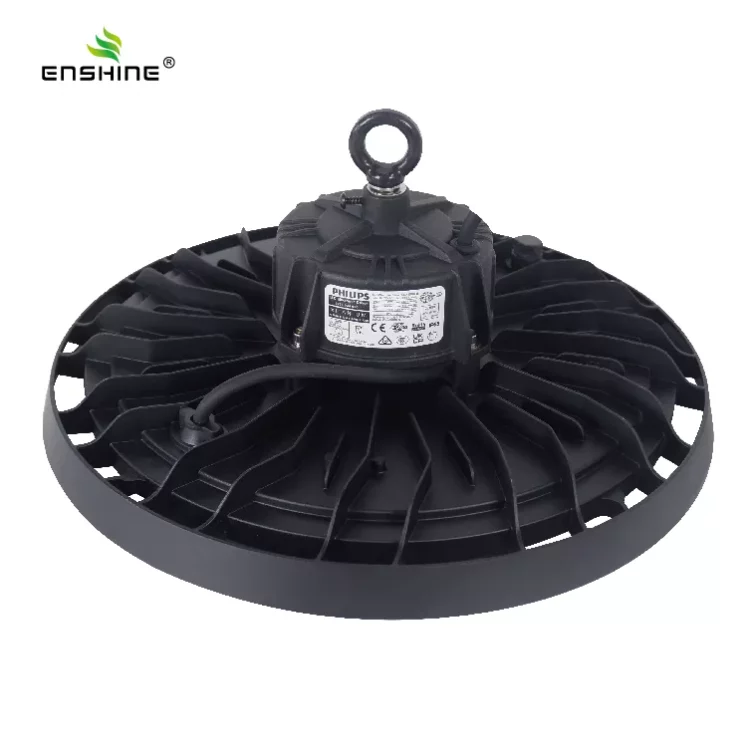

The high-purity aluminum heat sink with high heat-conducting performance. The aluminum heat dissipation is specially designed, which increases the heat dissipation area and enhances the efficiency of hot and cold air heat exchange. Effectively reduce the temperature of the light source and ensure the strong stability of the product function.
Specifications
| Model | YX-HL-02 | ||
| Voltage | AC100-277V , 50/60Hz | ||
| Wattage | 100W | 150W | 200W |
| Chip | sanan chip SMD*280 | sanan chip SMD*440PCS | anan chip SMD*600PCS |
| Efficacy | 150-160 lm/W | ||
| Ra | 70 | ||
| Driver | Philips driver | ||
| CCT | 6000-6500K | ||
| PF | 0.9 | ||
| Material | Aluminum + PC | ||
| IP | IP65 | ||
| Beam angle | 90° | ||
| Warranty | 5 years | ||
| Lifespan | 50000H | ||
Key Features
- Philips brand driver, 5 years warranty and 50000H lifespan
- DIP watt, one shape can be 3 different watt, save your stock problem
- High lumen LED 150-200lm/W available, 100-277V wide voltage
- IP65 waterproof, die casting aluminum material for good dissipation
- Ultra thin lamp body, beautiful and simple design
Application Areas
- Schools
- Auditoriums
- Hotels
- Factories
- Gasstations
- Indoor gymnasiums
- Exhibition halls
- Railway station waiting rooms
- Libraries
- Logistics warehouses
- Cold storage
- Industrial plants
- Production workshops
- Supermarkets
- Sports and entertainment venues and warehouses
Product Size
Installation Instruction
