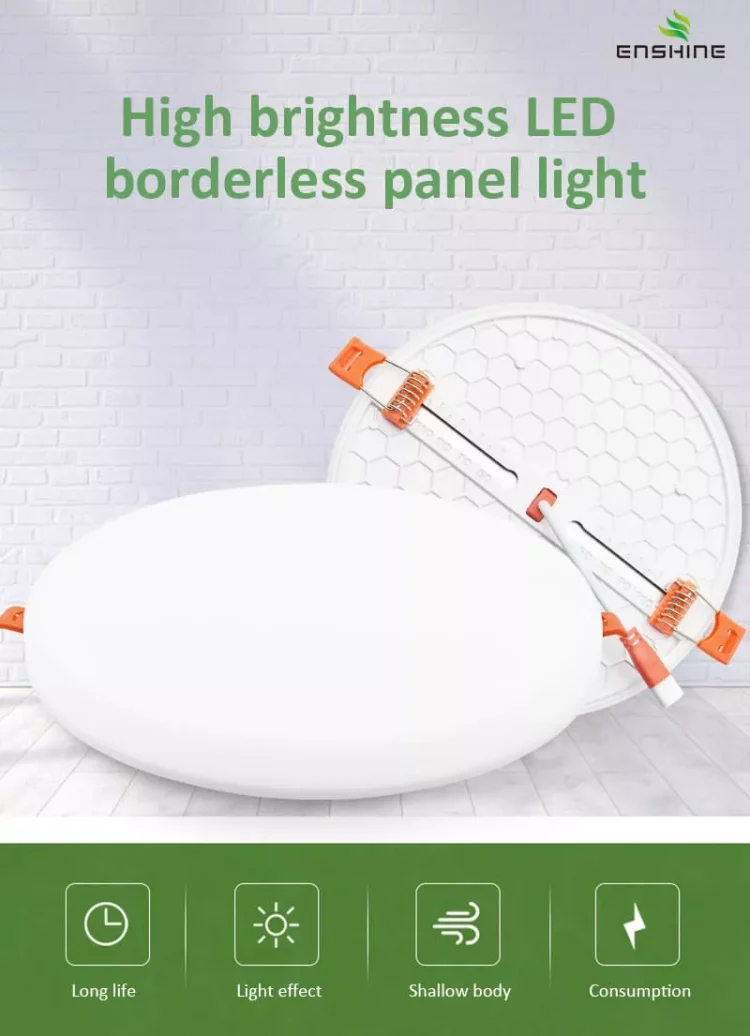

LED Adjustable Frameless Panel Light 36W
9W-36W frameless LED panel light with adjustable cutout sizes, 2700K-7000K CCT and circular or square options. OEM and ODM available.
Highlights

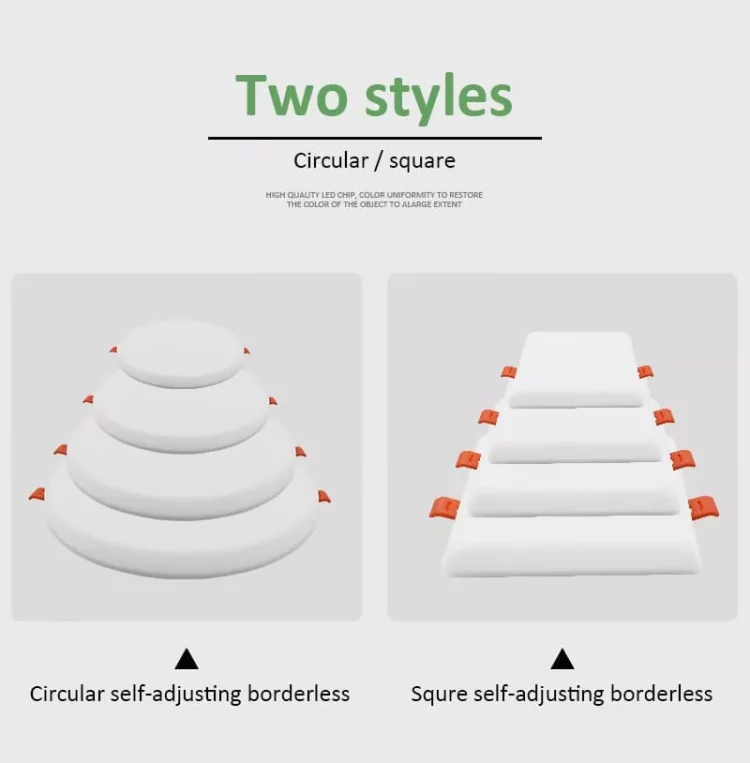

- Two styles: Circular/Square.
- 4 types of power: 9/10/18/24/36W/48W.
- Aluminum or Iron + Plastic lamp body, hole size adjustable.
- Regular or Lifud driver, no flicker, no dark area.
- High transmittance panel, uniform light effect, and dispersion.

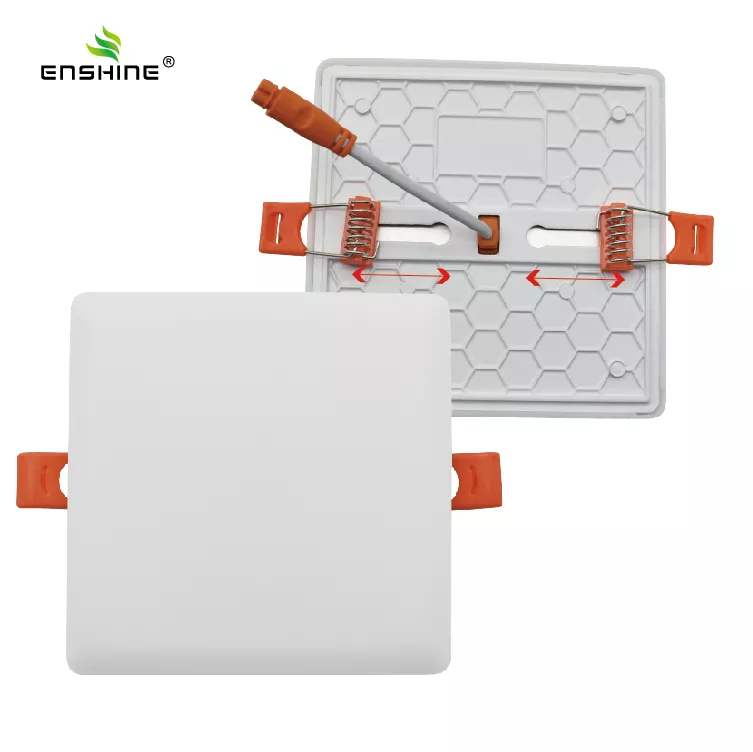

- Frameless LED panel light, hole size adjustable.
Specifications
| Wattage | 9W, 10W, 18W, 24W, 36W |
|---|---|
| Voltage | AC 90-265V |
| CCT | 2700K-7000K |
| CRI | >80 |
| Efficacy | 90 lm/W |
| IP rating | IP20 |
| Power factor | PF > 0.5 |
| Warranty | 2 Years |

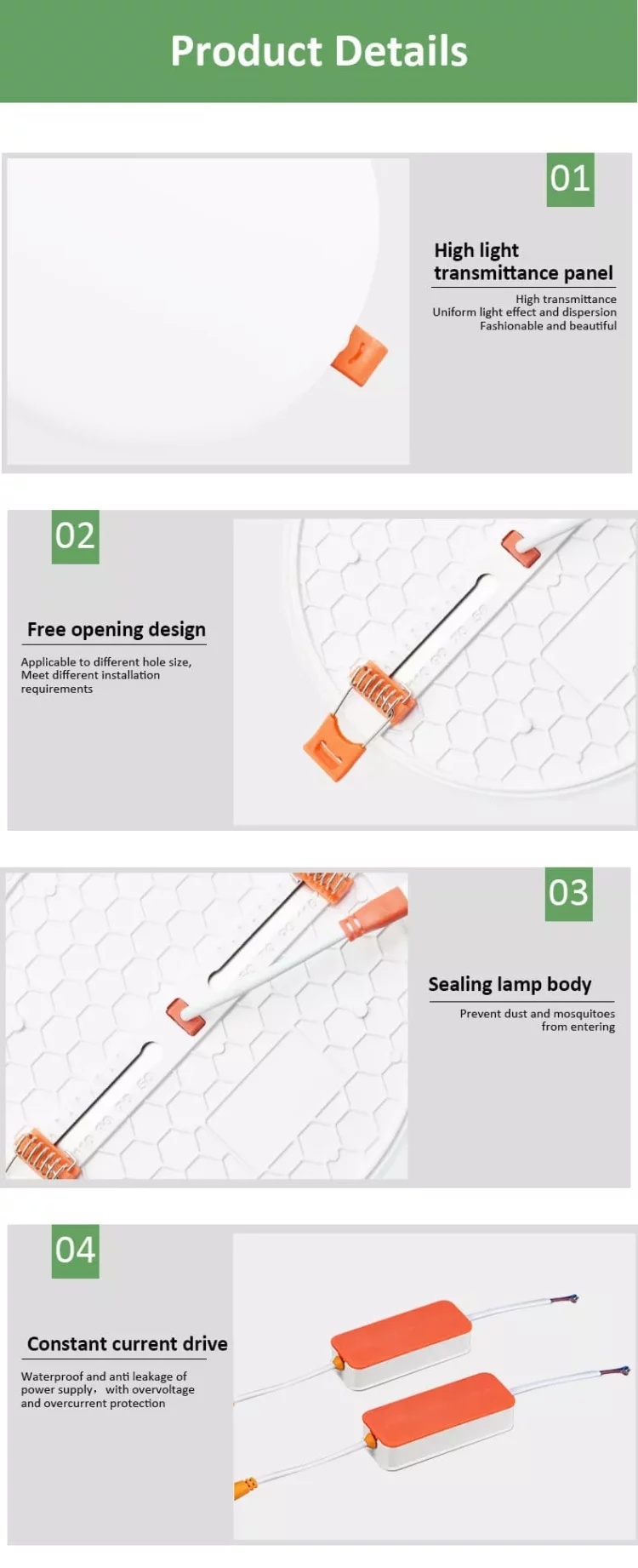

Product Details
Description

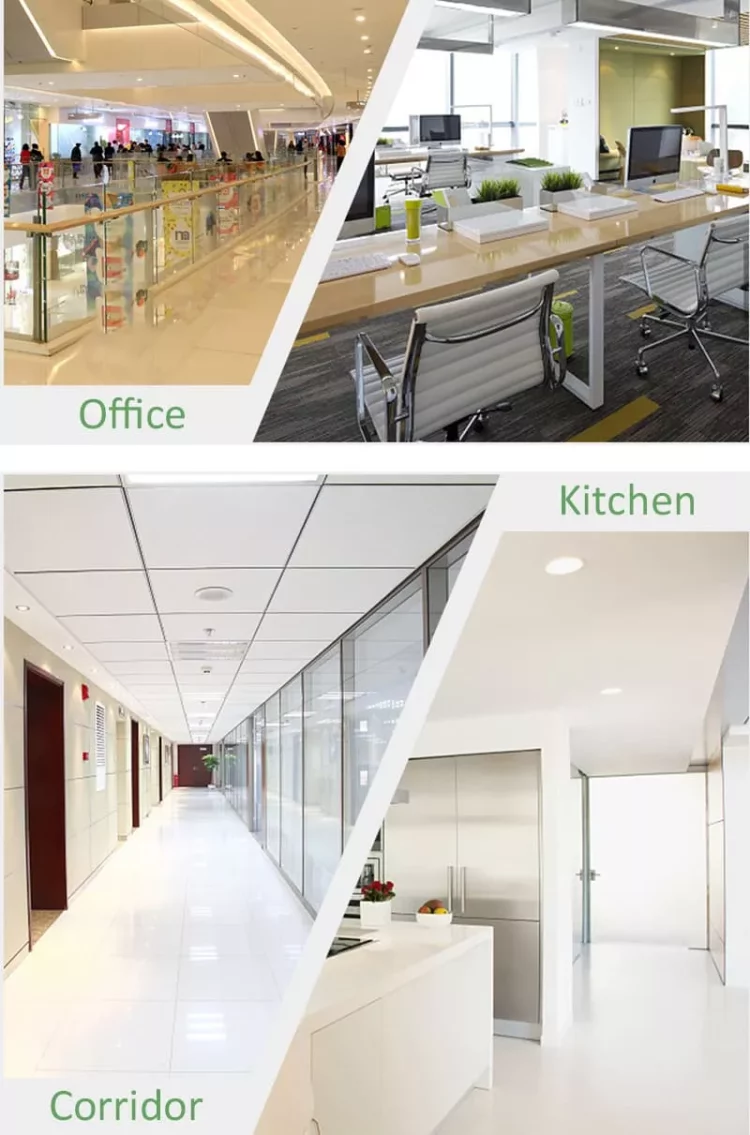

ENSHINE LIGHTING is a professional LED panel light supplier, our company is located in China and uses quality materials and advanced manufacturing technology to produce LED panel lights. Enshine's 18W LED panel Lights with exceptional 80 + CRI light and luminous efficiency can be customized 90-95lm/w. Voltage can be customized AC165V-265V or wide voltage AC100-265V. The surface-mounted LED panel light is available in 5 wattages (9W/10W/18W/24W/36W) and supports 2700-7000K color temperature customization. It can be easily installed on existing floor-to-ceiling ceilings, making it ideal for offices and other commercial applications. ENSHINE offers customers the rimless LED panel light for wholesale, including retailers, distributors, and other businesses. We are one of the top LED lamp manufacturers in China, our LED panel lights feature adjustable mounting apertures, high light transmission, no flicker, multiple color temperatures, and easy installation.ion.

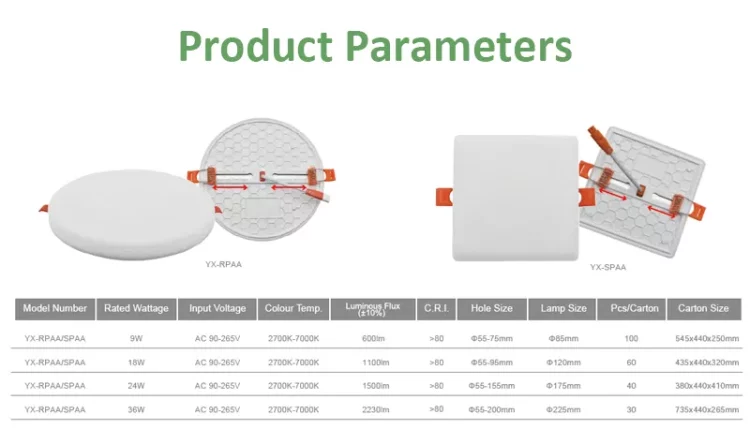

Specifications
Model | YX-RPAA/SPAA | ||||
Voltage | AC 90-265V | ||||
Wattage | 9W | 10W | 18W | 24W | 36W |
Luminous Effect (±10%) | 90 lm/W | ||||
Shape | Circular/Square | ||||
Color Temperature | 2700K-7000K | ||||
CRI | > 80 80 | ||||
Material | Die-casting Aluminium / Stamping aluminum/ Stamping Iron | ||||
Hole Size (mm) | Φ55-75 | Φ55-85 | Φ55-95 | Φ55-155 | Φ55-200 |
Lamp Size (mm) | Φ85 | Φ100 | Φ120 | Φ175 | Φ225 |
Average Life | 25000 hrs | ||||
Brand Name | ENSHINE | ||||
Warranty | 2 Years | ||||
Key Features
Two styles: Circular/Square.
4 types of power: 9/10/18/24/36W/48W.
Aluminum or Iron + Plastic lamp body, hole size adjustable.
Regular or Lifud driver, no flicker, no dark area.
High transmittance panel, uniform light effect, and dispersion.
Frameless LED panel light, hole size adjustable.
Customizable color temperature: 2700-7000K.
Multiple hole sizes, and color temperatures for easy selection.
Recessed installation, with clip accessories, easy installation.
Service: OEM / ODM Customized.
