Description

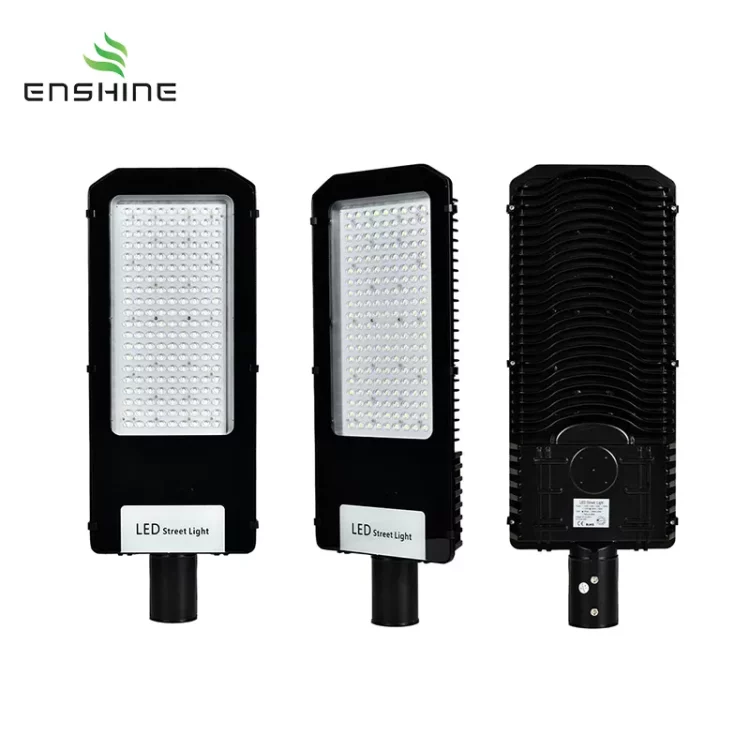

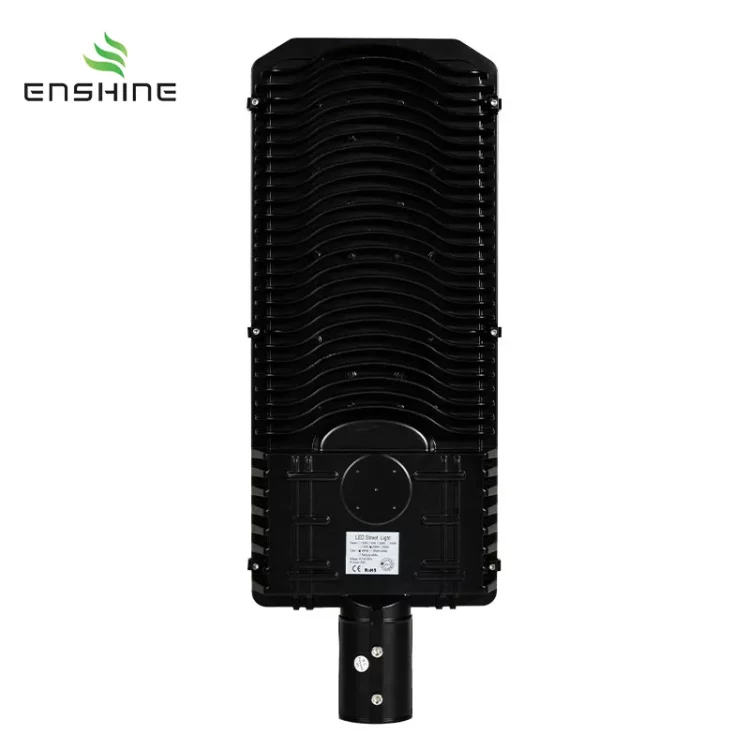

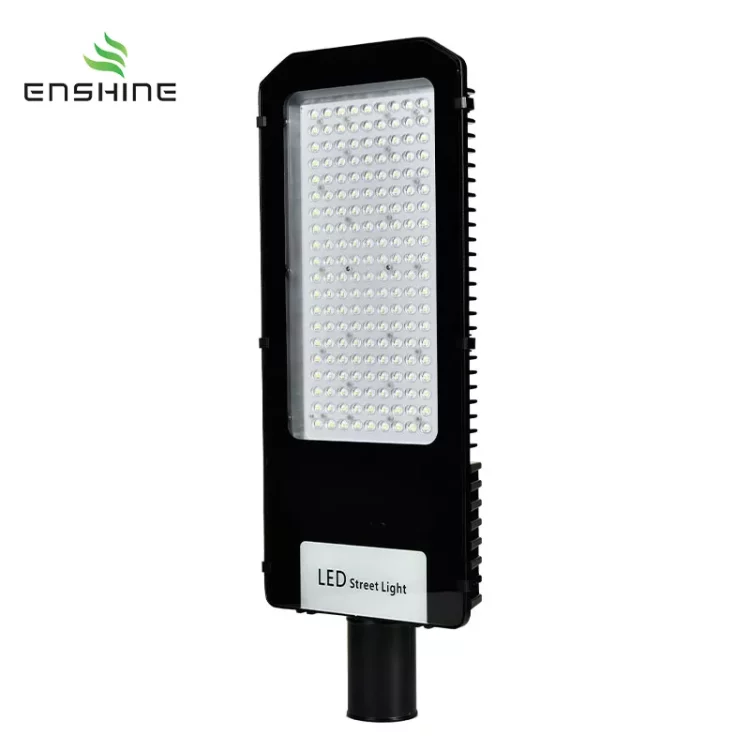

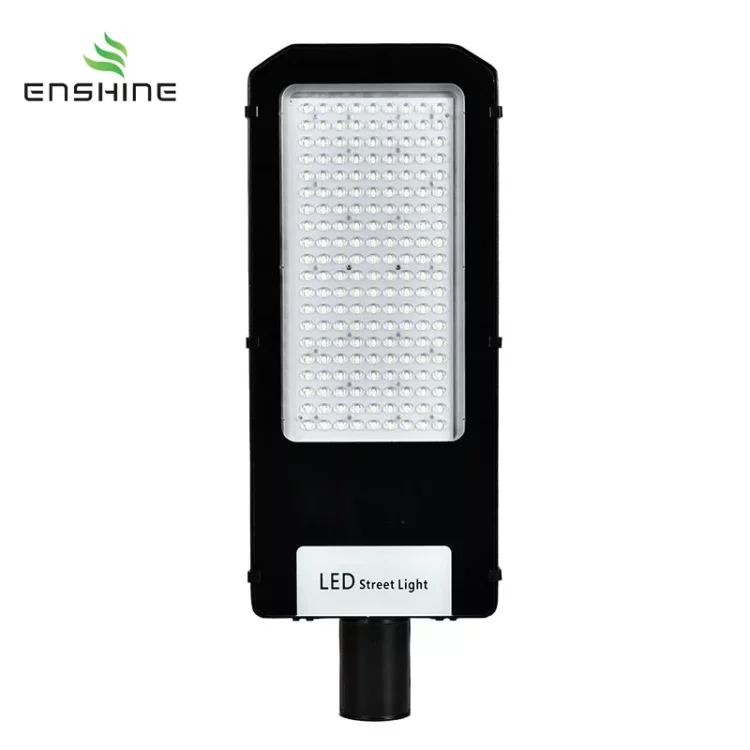

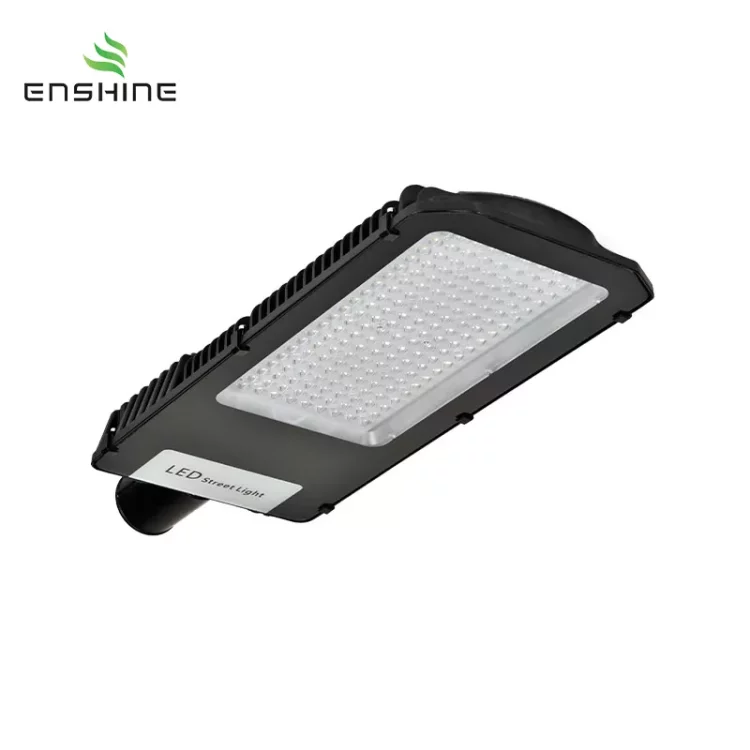

ENSHINE’s YX-SL-03 series industrial street lights adopt a die-cast aluminum light body, one-piece die-casting molding, strong corrosion resistance, high-temperature resistance, and good heat dissipation performance, which can effectively extend the service life of the street light. The light source is made of high-efficiency SMD3030 LED chips, which have a uniform luminous effect, no light decay, and a long service life. Together with the optical lens, the light is soft and comfortable. The lampshade is made of toughened glass with high strength and is not afraid of being hit during transportation.
Enshine’s LED outdoor street lamps are environmentally friendly and energy efficient, with a power factor >0.9 and high luminous efficiency. IP65-rated waterproof designs can cope with harsh weather conditions.

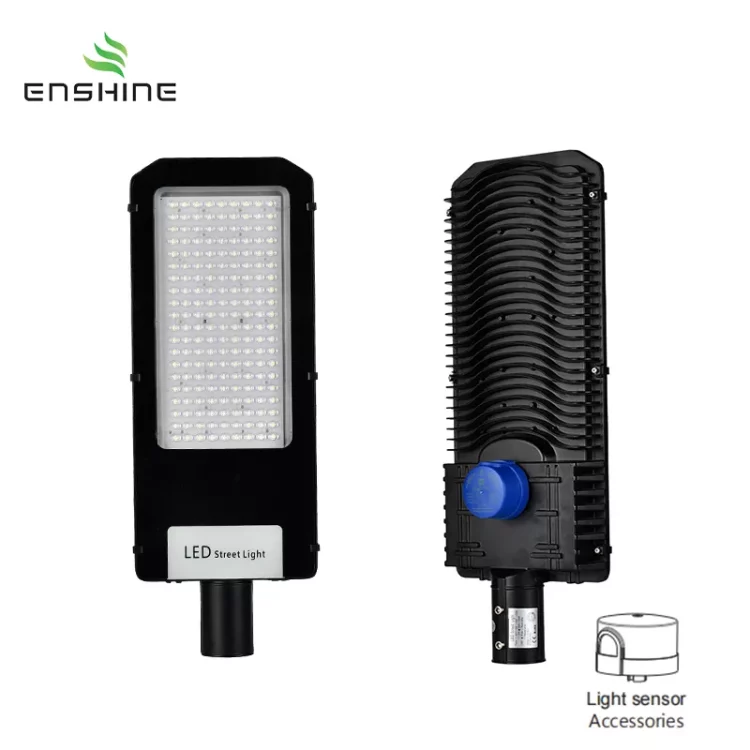

In addition, our LED street lights can be equipped with intelligent light sensors with high sensing sensitivity to automatically turn off during the day and light up at night. By using Enshine’s LED streetlights with light sensors, you can achieve high-quality, energy-efficient, environmentally friendly lighting while reducing operation and maintenance costs.
Specifications
| Model | YX-SL-03 | ||||
| Voltage | AC 100-265V, 50/60Hz | ||||
| Wattage | 50W | 100W | 150W | 200W | 250W |
| Light Effect | 90-100 lm/W | ||||
| LED Chip | SMD 3030 | ||||
| Color Temperature | 3000K-6000K | ||||
| Color Rendering Index | Ra＞70 | ||||
| Color Tolerance Adjustment | ≤10SDCM | ||||
| Power Factor | PF > 0.9 | ||||
| Beam Angle | 70°x140° | ||||
| IK/IP | IK08/IP65 | ||||
| THD | ≤ 15% | ||||
| Insulation Grade | Class I | ||||
| Surge Protection | 4 KV | ||||
| Installs Way | Lamp Post | ||||
| Material | Die-cast aluminum + toughened glass | ||||
| Product Size (mm) | 424×173×75 | 506×212×74 | 601×227×75 | 655×240×72 | 815×300×81 |
| Average Life | 50000 Hrs | ||||
| Brand Name | ENSHINE | ||||
| Warranty | 3 Years | ||||
Key Features
- SMD 3030 patch light source

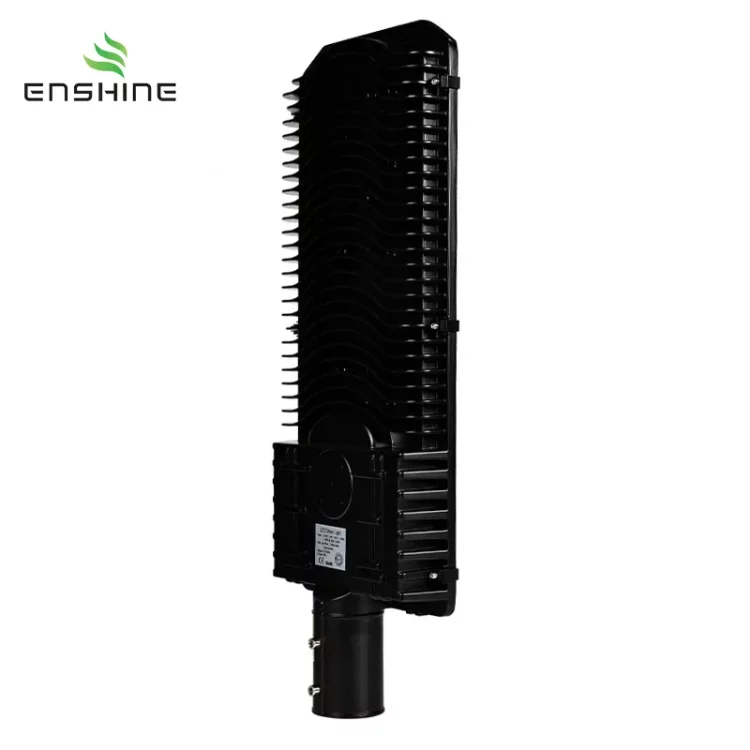

- High-purity aluminum radiator
- High-stability isolated constant current power supply scheme
- Adjustable beam angle: 70° x 140°
- Long lifespan & 3 years warranty

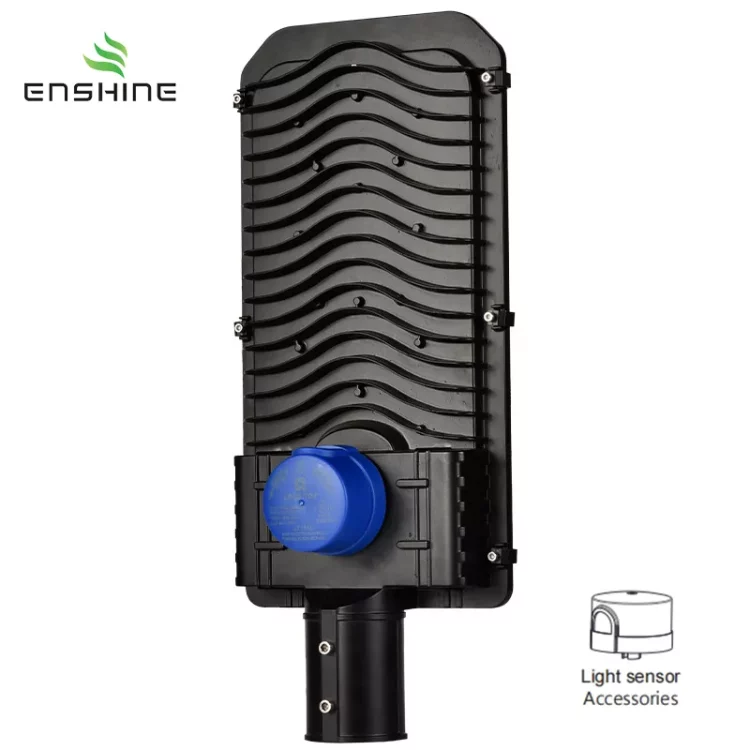

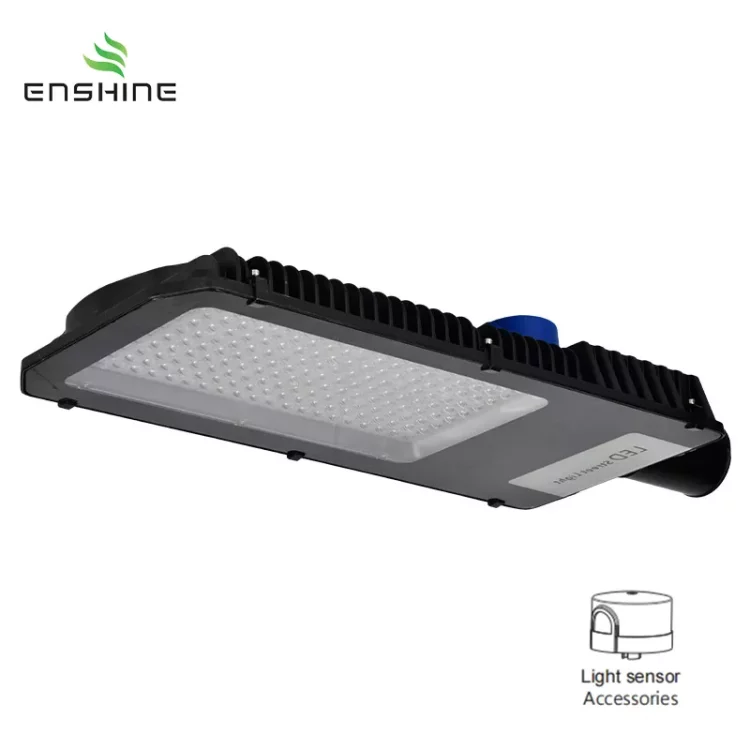

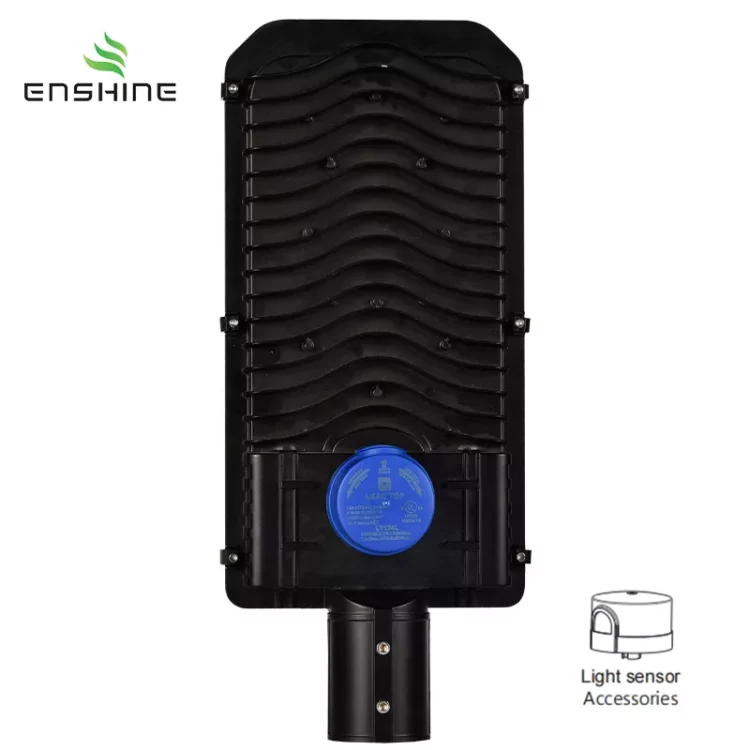

- Light sensor accessories
Application Areas
Specially built for city road lighting, it is widely applicable to city fast roads, main roads, secondary roads, industrial factory roads, highways, garden plots, and other lighting places.
Installation Instruction
To choose the right LED street light, we recommend that users choose the right luminous flux, colour temperature, luminaire power and other parameters according to their actual needs. In addition, you can also refer to the installation height and lighting range of the LED street light and other parameters to choose a suitable lamp model.
The lifespan of an LED street light usually depends on the quality of its internal components and the environment in which it is used. Users can choose LED streetlights with high quality LED chips, high quality electronic components and protective measures to extend their service life.
ENSHINE’s LED street lights use high quality LED chips and die-cast aluminium bodies, which can effectively guarantee the service life of our street lights, which can last up to 50,000 hours.
This may be caused by the luminaire being underpowered or reaching the end of its useful life. The user can replace the LED bulb with a higher wattage bulb or replace it with a new LED street light to improve the brightness.
Users can regularly check and maintain the luminaire, clean the surface of the luminaire, check whether the wires and circuits are normal, etc. according to the usage of the LED street light. If a fault is found, it should be repaired or replaced in time.
Check that the light sensor is not obstructed, e.g. branches, leaves, dust, etc. If so, remove these objects. If the sensor is damaged, it needs to be replaced.
